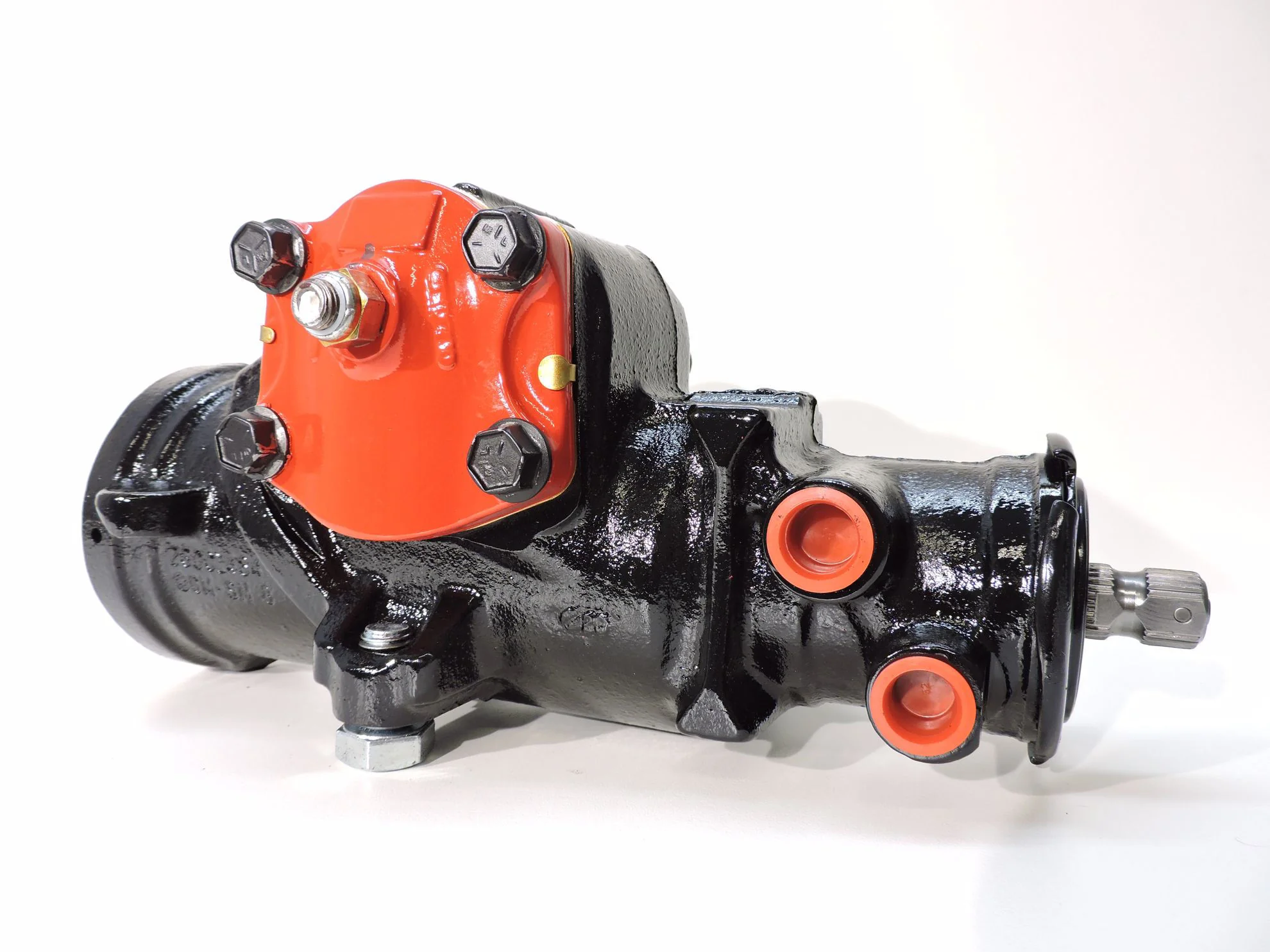

Part Number: 2869-4T (4-4.5 Turns).
Part Number Fits: 1994-2001 Dodge 1500 or 1994-2002 Dodge 2500-3500 Pickup Trucks.

Please Note: We now offer the frame stabilizers for this gear box, If you have a Dodge without a solid front axle please click on the following link to view: 32002

If you have a Dodge with a solid front axle please click on the following link to view: 32004

Please Note:

This Steering Gear Box is available in a 3 Turn option (3 Turns of the steering wheel, versus the stock 4 Turn) which is applicable if the vehicle is not used for off-roading, has tires that are smaller than 37 inches in diameter, and a quicker response is desired when steering, please click on the following link to view: 2869-3T

Please Note: If you do order a 4 Turn Steering Gear, and send in your 3 Turn Steering Gear as a core, due to a parts shortage of 4 Turn Steering Gears, there will be a $75 reduction in your core refund.



NEW: We now stock a pitman arm for this gear. Along with several other benefits, this also eliminates the need to remove your old pitman arm from your core. If you've ever struggled with pitman arm pullers breaking or had to resort to torches or cut-off wheels, this is the solution for you. Order a pitman arm from us and skip what is possibly the most challenging part of the installation!



Stock Pitman arm (Fits 1994-1999 2WD Dodge Trucks with a GVW of 7,500 pounds with stock suspension or level lift kits up to 3.5 inches): PA-2869-2x4-7500



Stock Pitman arm (Fits 1994-1999 2WD Dodge Trucks with a GVW of 8,800 pounds with stock suspension or level lift kits up to 3.5 inches): PA-2869-2x4-8800



Stock Pitman arm (Fits 1994-1999 4WD Dodge Trucks with stock suspension or level lift kits up to 3.5 inches): PA-2869-4x4E



Drop Pitman arm (Fits 1994-1999 Dodge Trucks with suspension lift kits of 4-6 inches): DPA-2869E





Stock Pitman arm (Fits 2000-2002 2WD Dodge Trucks with stock suspension or level lift kits up to 3.5 inches): PA-2869-2x4



Stock Pitman arm (Fits 2000-2002 4WD Dodge Trucks with stock suspension or level lift kits up to 3.5 inches): PA-2869-4x4L



Drop Pitman arm (Fits 2000-2002 Dodge Trucks with suspension lift kits of 4-6 inches): DPA-2869L
